Sunday Blueprint 20"

Sunday Blueprint 20"

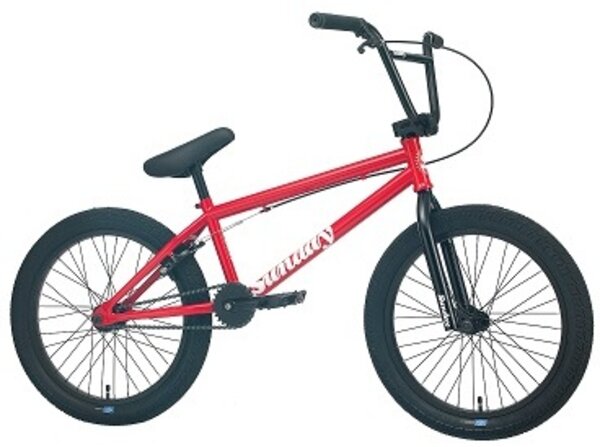

  • Color: Gloss Fire Engine Red
  • Color: Gloss Sunday Blue
$429.00
Please select options

Details



The Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.

This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you focused on the important part - riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.
Key Features

Sunday Current v2 2.4"
Odyssey Springfield Brakes
FSA Integrated Headset
Sunday Cornerstone Grips
Sunday Freeze Front Load Stem
KMC S1 Chain

Specifications
Frame: Sunday Blueprint, 20" top tube, integrated 1-1/8" head tube
Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminum cap
Brake Lever: Aluminum, U-brake compatible
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Sunday Cornerstone
Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Integrated

Sprocket: Sunday S-Logo, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Loose-ball, American, 19mm
Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 20", 36H
Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle
Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
Spokes: 14g steel, black
Tires: Sunday Current, 20 x 2.4" (F & R)
Chain: KMC S1
Approx. Weight: 26lbs (with brakes)
Frame Geometry

Top Tube Length: 20"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 8.75"
Handlebar Geometry

Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°

*Specs subject to change without notice.

Part Numbers

Option Store SKU
Gloss Fire Engine Red 210000000677
Gloss Sunday Blue 210000000681
