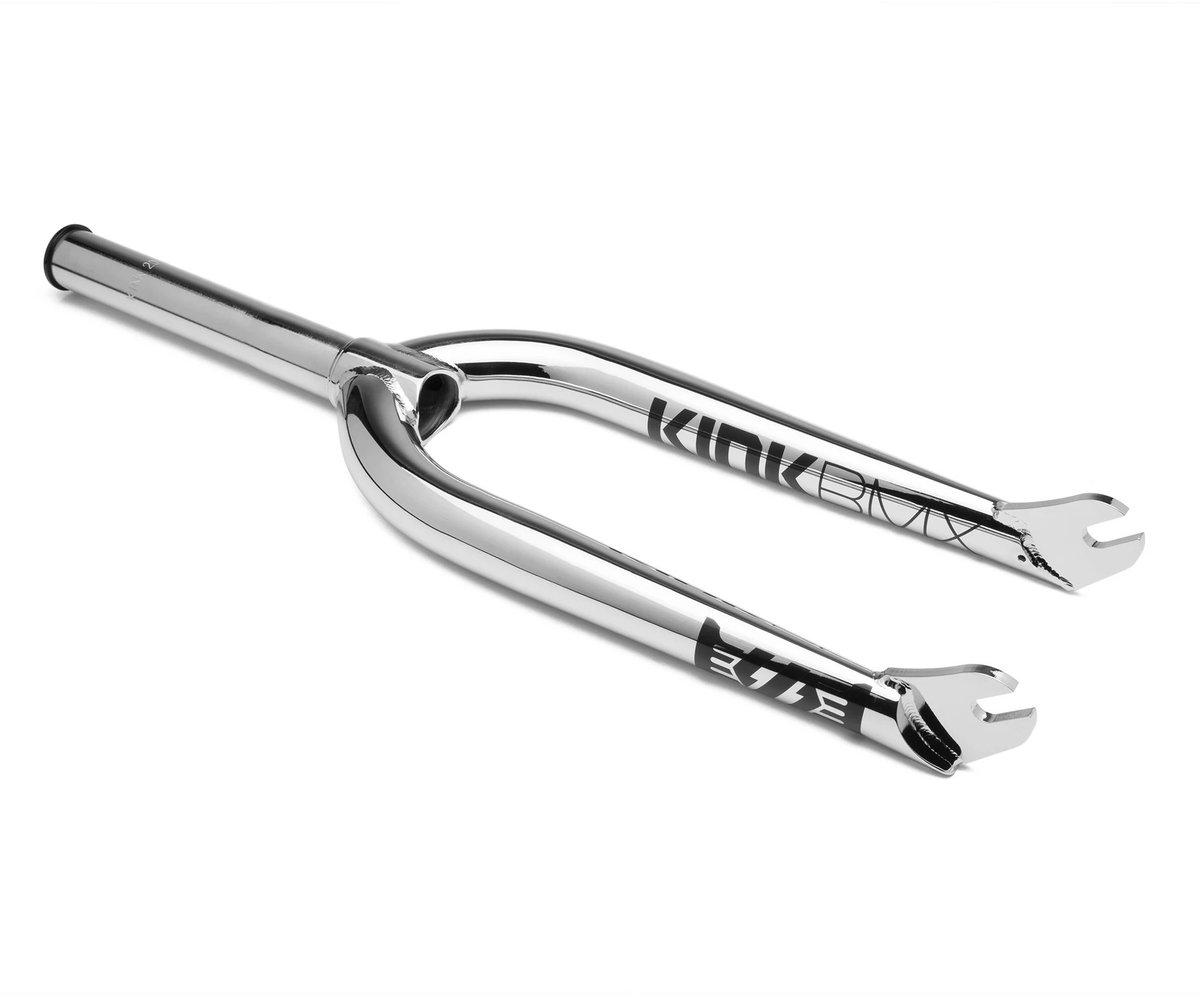

Kink Stoic forks put the focus on strength first and foremost while maintaining a great aesthetic and super modern geometry. The custom-formed, tapered, and ovalized fork legs create additional hub guard clearance while providing a ton of stiffness. Internally butted tubing adds all the strength where it's needed, while keeping everything at a reasonable weight, both in the fork legs and steerer tube. The investment cast fork leg ends feature clean, debossed K-Brick logos in the back and a generous radius in the front for plenty of peg clearance.
TECH SPECS
- Fork Height: 316mm
- Steerer Tube Length: 165mm
- Dropout Offset: 15mm or 20mm
- Dropout Slot: 10mm (3/8")
- Dropout Thickness: 5mm Laser-Cut
- Bearing Race: Integrated
- Compression Bolt Thread: M24×1.5mm
- Compression Bolt Hex: 7075-T6 3/8" Ratchet and 6mm Allen Key
- Tubing Material: 100% 4130 Chromoly Steel
- Fork Leg: Tapered Oval with Internal Butting
- Fork Leg Ends: Investment Cast with K-Brick Logo
- Heat Treatment: TruTherm Post-weld Heat Treated
- Weight: 34.1oz (Including Fork Bolt)
Part Numbers
Option | UPC | MPN |
---|---|---|
Chrome / 15mm | 680031727499 | K6560-15CRO |
